Multi-side Tent Customized tent dome manufacturer

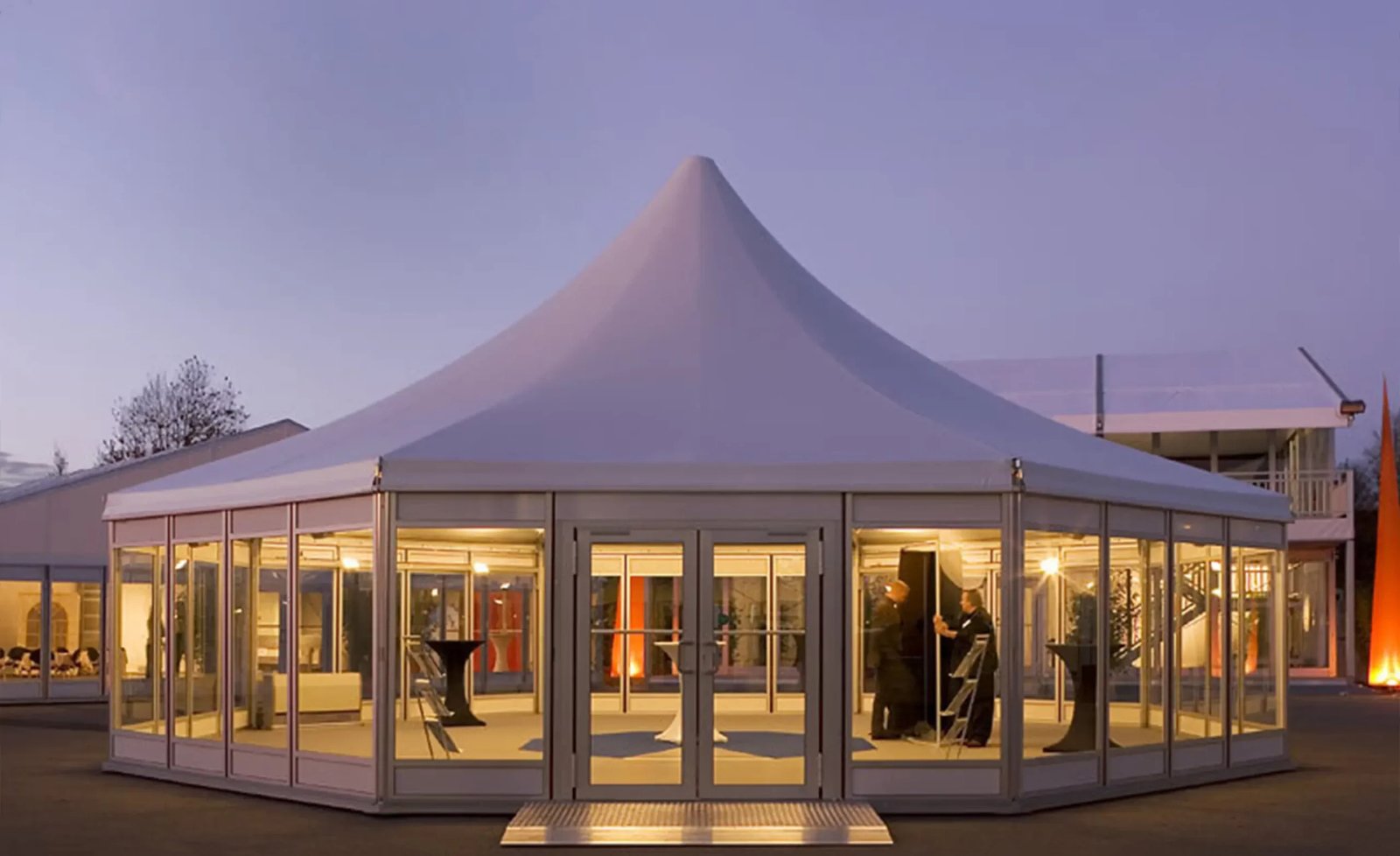

The multi-sides tent is a tent made up of hexagons, octagons, decagons and twelfth tent on the basis of a tent and this round tent series has a unique diamond roof and high peak roof designs.
Multi-sides tent can be used alone or in conjunction with regular A-shaped tents. Pagoda tents become a mix tent to suit your needs. It is widely used as a fashion week, hotel residence, VIP lounge, large wedding events, wedding parties, etc. The installation and disassembly process is easy and time-consuming, either as a temporary structure or as a permanent building.
Clear span width has a wide range from 6m – 35m, Full line accessories are compatible for this series.

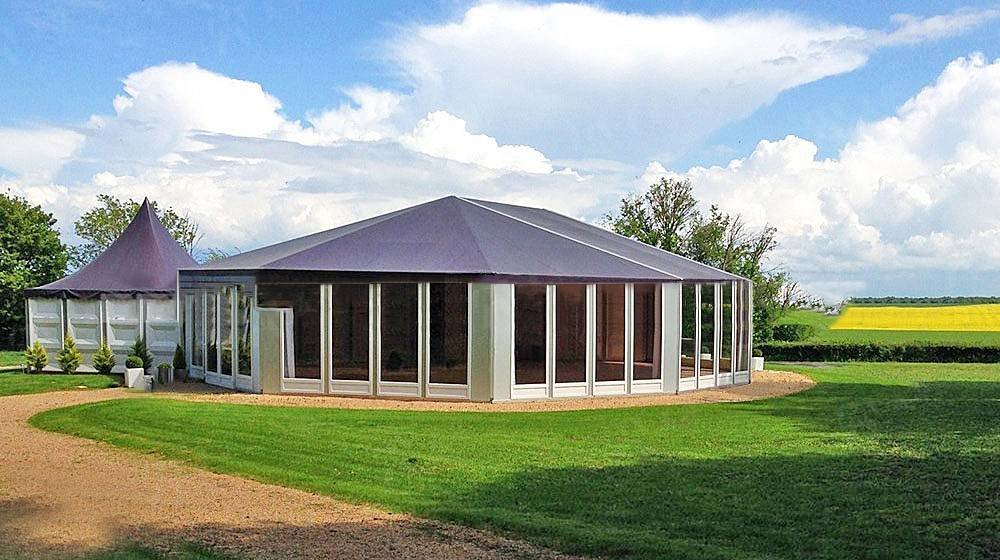

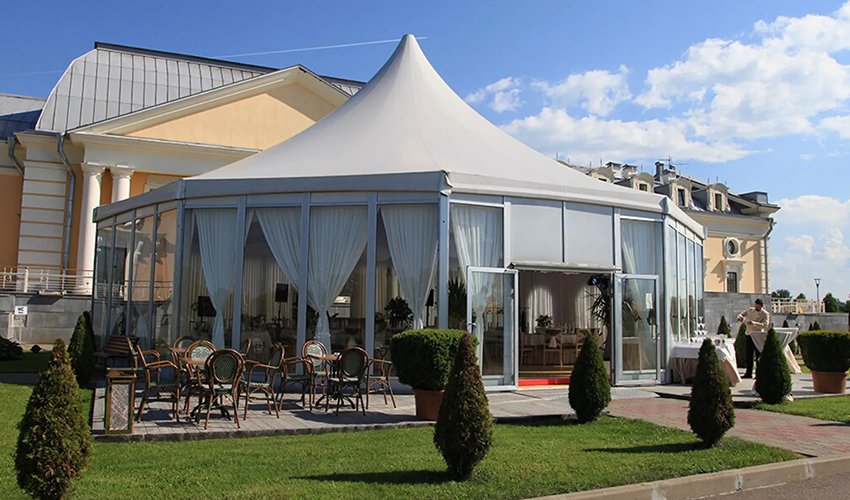

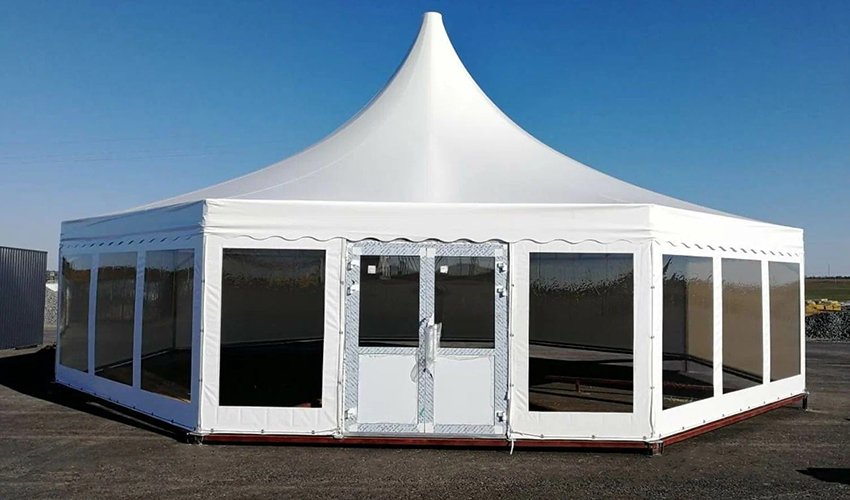

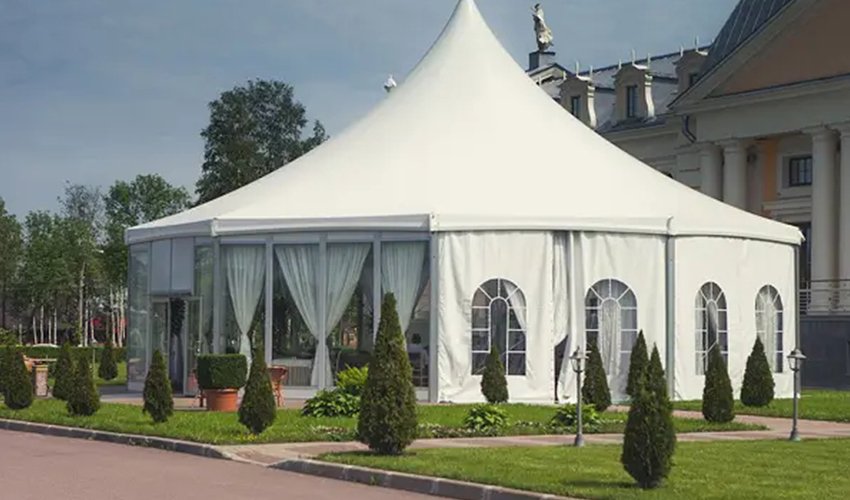

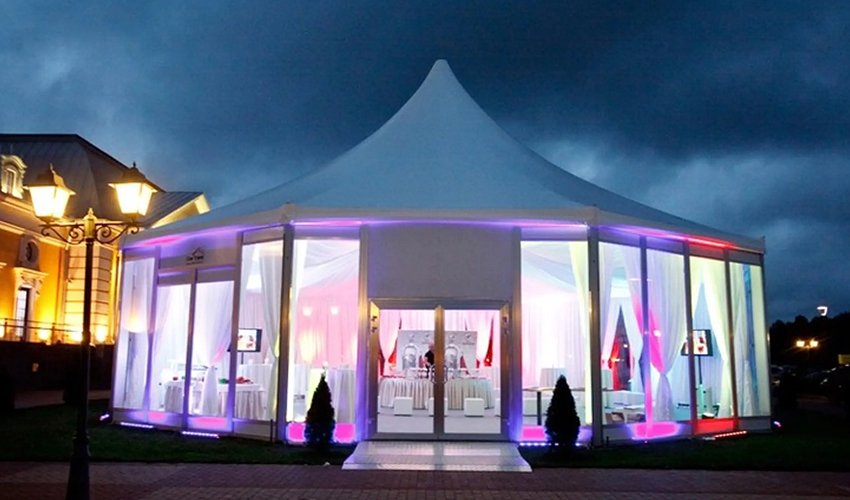

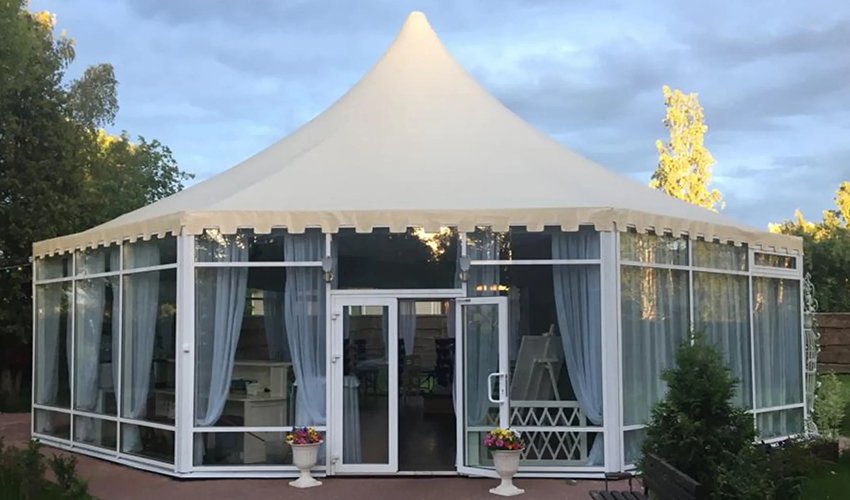

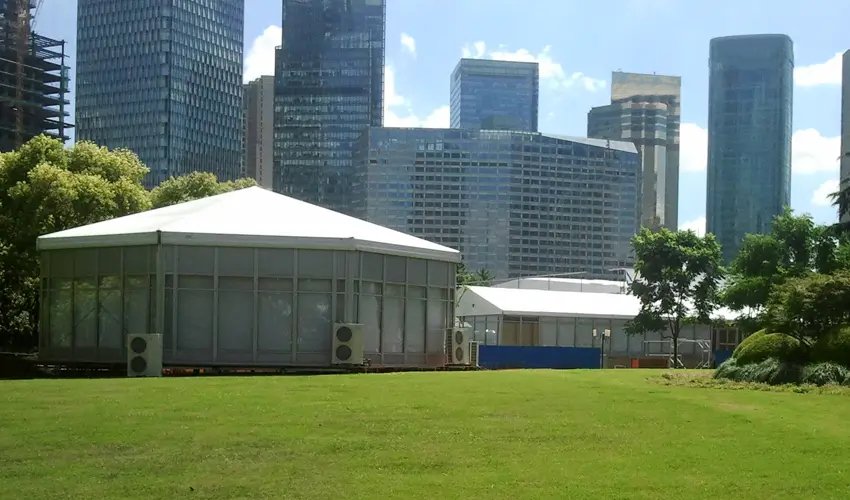

Product Gallery
Models & Sizes (Span width from 6M to 25M)
6-25M
| Span Width | Eave Height | Bay Distance | Longest Component | Wind Load |
|---|---|---|---|---|
| 6m | 2.6m | 3m/5m | 3.6m/5m | 80km/h |
| 8m | 2.6m | 3m/5m | 4.2m/5m | 80km/h |
| 10m | 3m | 3m/5m | 5.3m | 80km/h |
| 15m | 4m | 5m | 7.9m | 80km/h |
| 16m | 4m | 5m | 8.5m | 80km/h |
| 18m | 4m | 5m | 9.5m | 80km/h |
| 20m | 4m | 5m | 10.6m | 80km/h |
| 25m | 4m | 5m | 10.6m | 80km/h |
Specifications
-Flexible detaching and relocation
-Easy to assemble and disassemble, short construction period for puting into use
-Repeatedly built and used
-Low construction cost with no foundation treatment needed
-Equipped solution with security system, power supply, heating system, ventilation and other ancillary equipment.
-Convenient transportation and storage
| Frame material | Aluminum alloy T6061-T6 / T6082-T6 |
|---|---|
| Fabric cover | PVC-coated polyester textile; 100% waterproof;UV resistant, tear-resistant, self-cleaning ability, etc. |
| Roof cover | 850g/sqm white PVC/acrylic Fabric |
| Sidewall cover | 650g/sqm white PVC/acrylic Fabric |
| Fabric color option | White, yellow, Green, Blue, transparent and customized |
| Connector | Strong hot-dip galvanized steel. |
| Allowed temperature condition | -32 degree Celsius +72 degree Celsius |
| Wind load | 80-100km/h |
| Snow load | 80kg/sqm (snow can’t stay if use big degree roof pitch design) |
| Other features | Easy to assemble and disassemble. No pole inside, 100% available interior space |
- PVC window sidewalls
- Anchoring
- Rain Gutter
- Lining and curtain
- Glass door units
- Hard walling system
- Glass walling system
- Transparent PVC cover and sidewall
- Flooring system
- Passenger door
- Manual/Automatic rolling door
- Sandwich panel wall
- Flooring system
- Weight plate
- Air conditioning
More accessories are available, please feel free to contact us if you need more information.
